Agentic Workflow Editor

Build, connect, and execute powerful AI workflows using a visual, no-code interface. From simple task chains to full-blown multi-agent orchestration — without writing a single line of code.

What is Agentic Workflow?

Agentic Workflow Editor is a visual builder that lets you create and manage AI workflows composed of models, agents, tools, and task logic — like a modular intelligence engine.

Instead of scripting interactions between various models or APIs, you can drag components onto a canvas, configure them, connect them visually, and run the flow to see the outcome — all from your browser.

Who is this for?

  • AI Engineers & Researchers – Quickly prototype multi-agent systems
  • Data Scientists & Analysts – Automate complex logic chains without coding
  • Product / Ops Teams – Connect AI models to business logic visually
  • Consultants & Agencies – Package workflows as reusable templates

Getting Started

To begin using the Agentic Workflow Editor :

  1. Go to your io.net Dashboard.

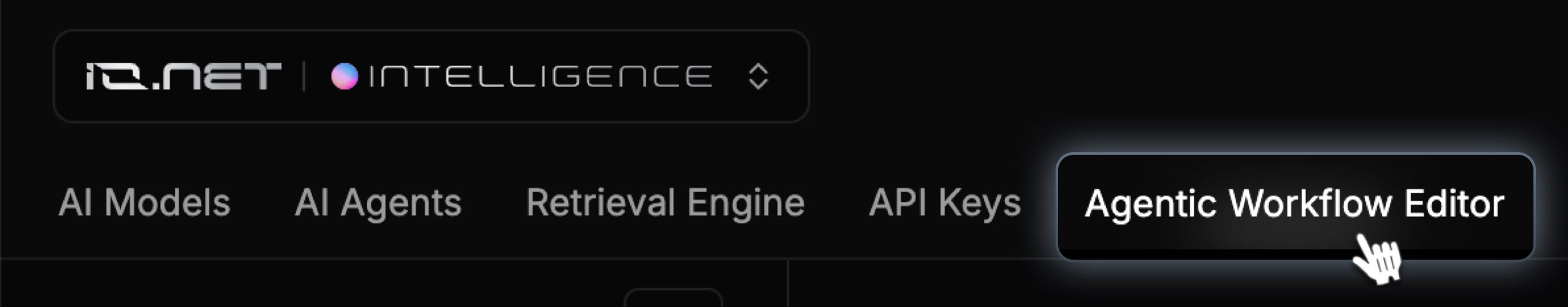

  2. Navigate to the Agentic Workflow Editor under IO Intelligence section.

  3. Create a new workflow and start interacting with AI models.

Interface Overview

SectionDescription
Left SidebarWorkflows list: folders, create new flow, rename/delete
Center EditorVisual flow builder: drag & drop components
Right SidebarSettings for selected components
Bottom PanelFlow Outcome result: logs and execution steps

Import your flow before starting:

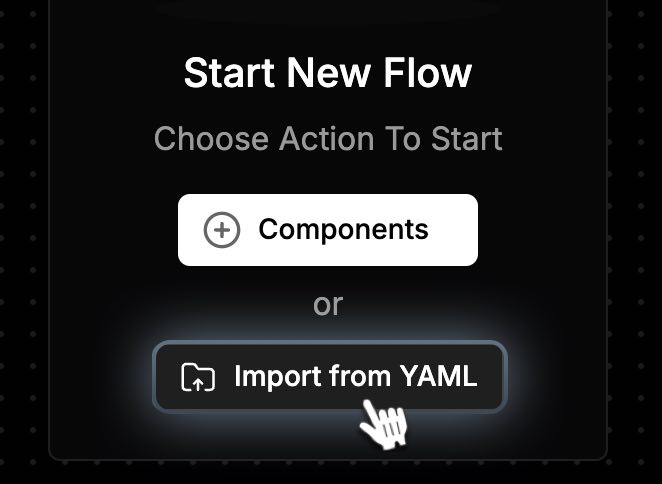

  • Click Import From YAML button when you just created new flow in the center of the flow editor

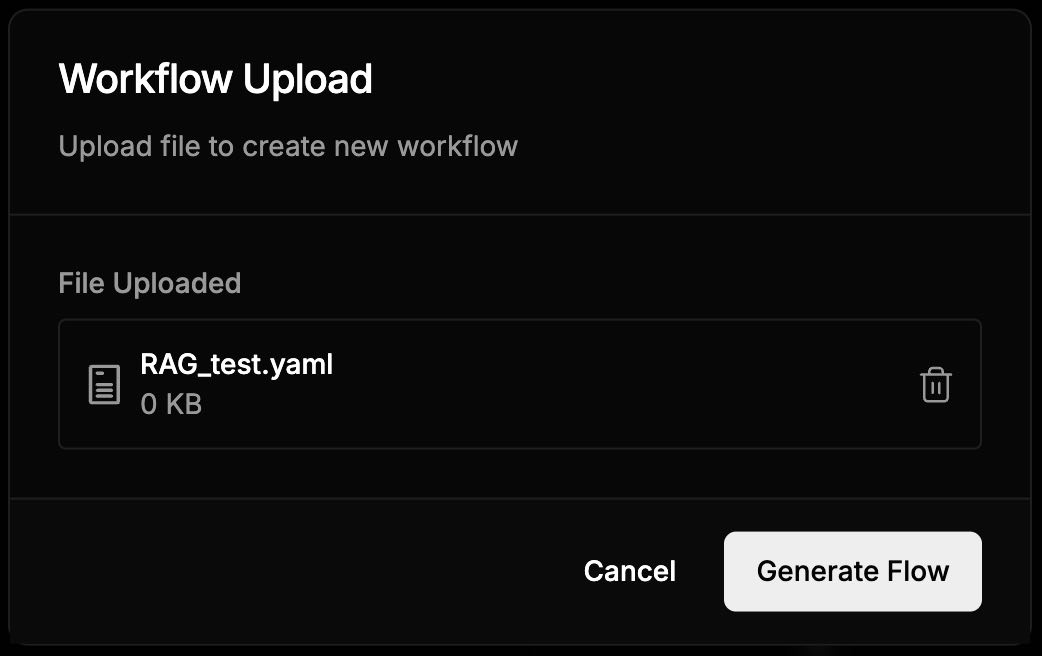

  • Upload .yaml file (max 1MB)

  • Click Generate Flow

How the flow working

To design an effective agentic workflow, we recommend the following order:

1. Create an Agent

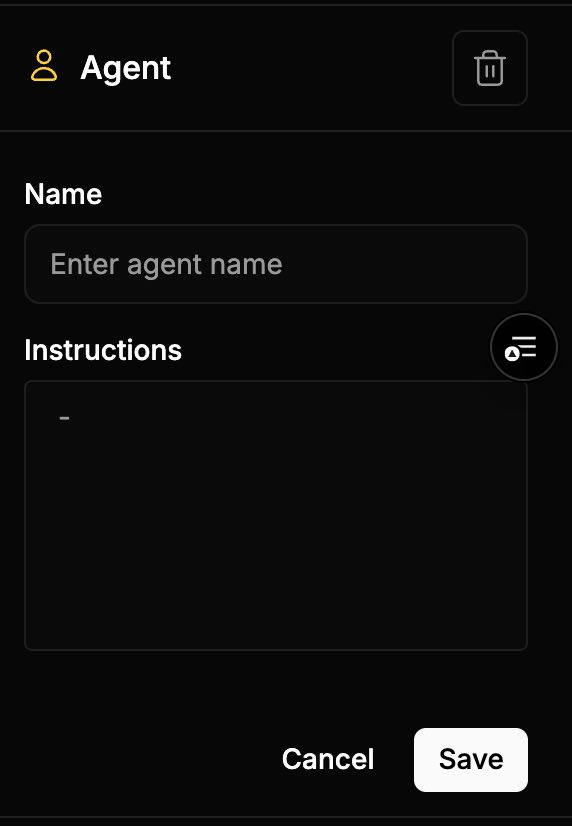

Start by adding an Agent component to represent your core logic and behavior. In the right sidebar, configure: Agent Name, Instructions (what it should do), Swarm Name (for group coordination if applicable)

🚧

First, insert an Agent component. Then connect it to a Model, followed by Tasks or Tools.

2. Pick an AI Model

Attach an AI Model to the Agent by clicking into the component and choosing from the available models in the right sidebar. This defines the core reasoning engine your agent will use.

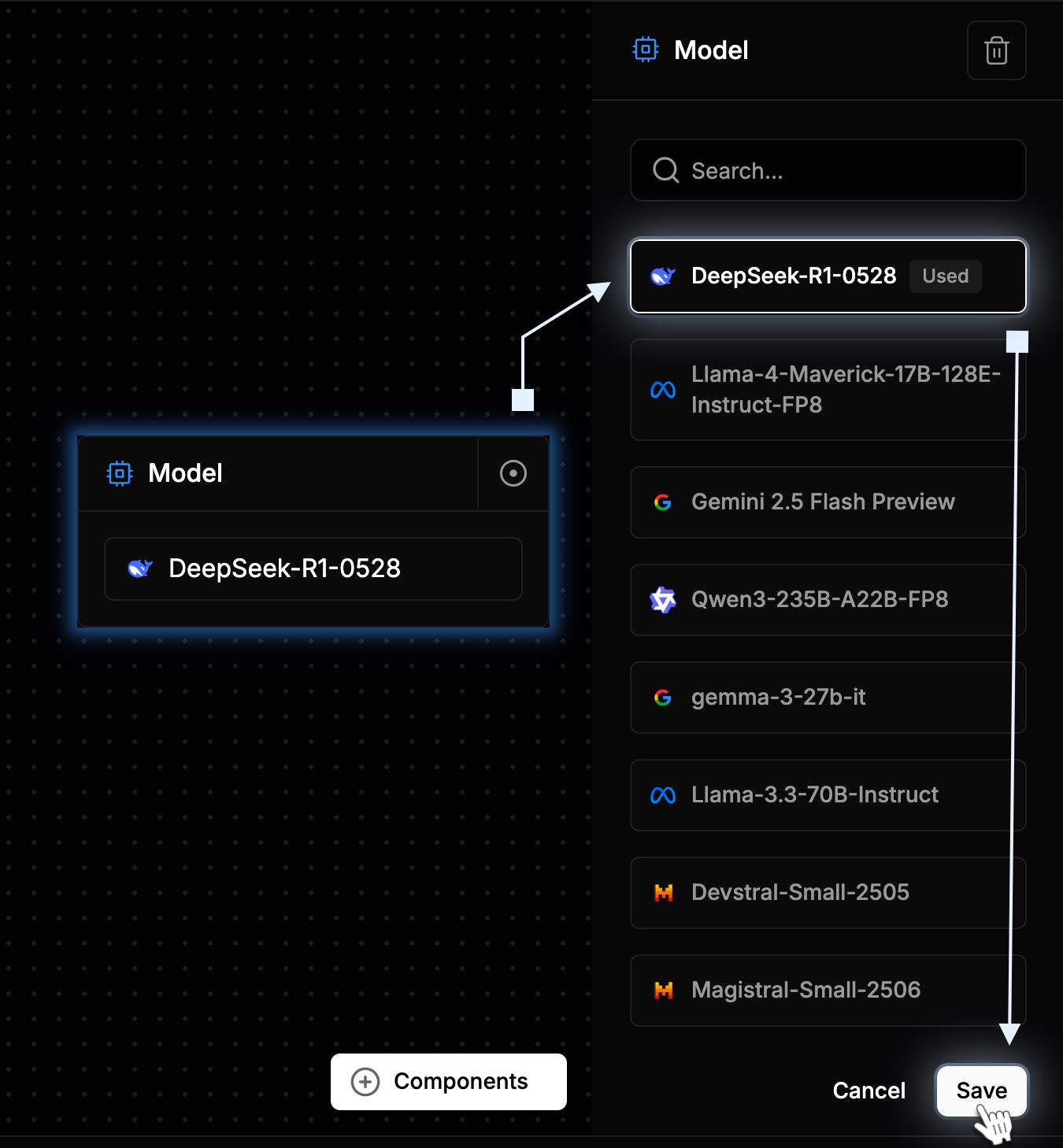

  1. Click Add Component → Select AI Model

  2. Select the Component block → use right sidebar to:

    • Search and select an AI model

    • Click Save

  3. The block updates with the model name

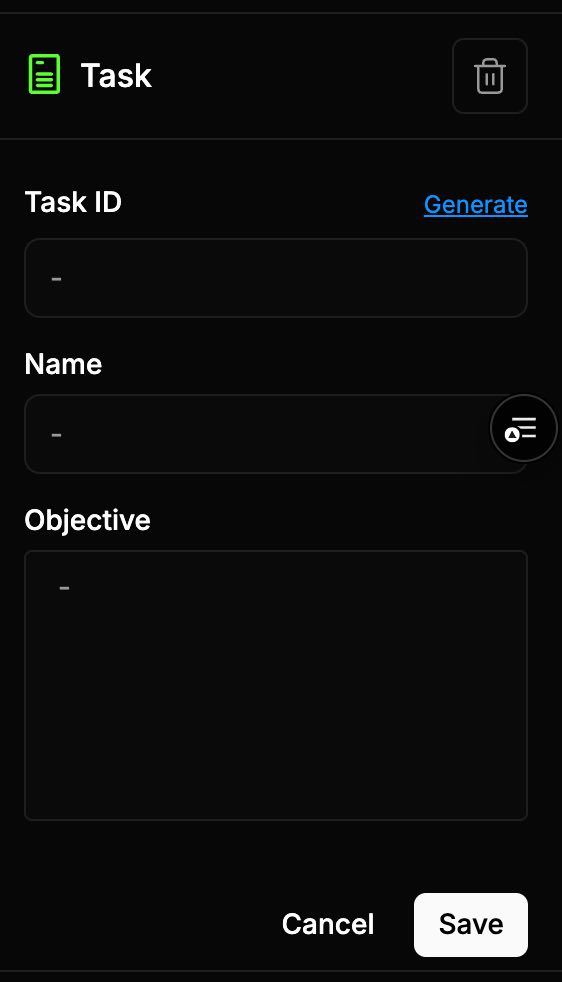

3. Define Tasks

Add Task components for specific steps your Agent will perform. Configure each task with: Task ID, Name, Text, Client Mode (on/off)

4. Connect Tools

Use Tool components to integrate external capabilities — such as RAG search, cryptocurrency data, or web search. Tools allow Agents or Tasks to interact with these systems.

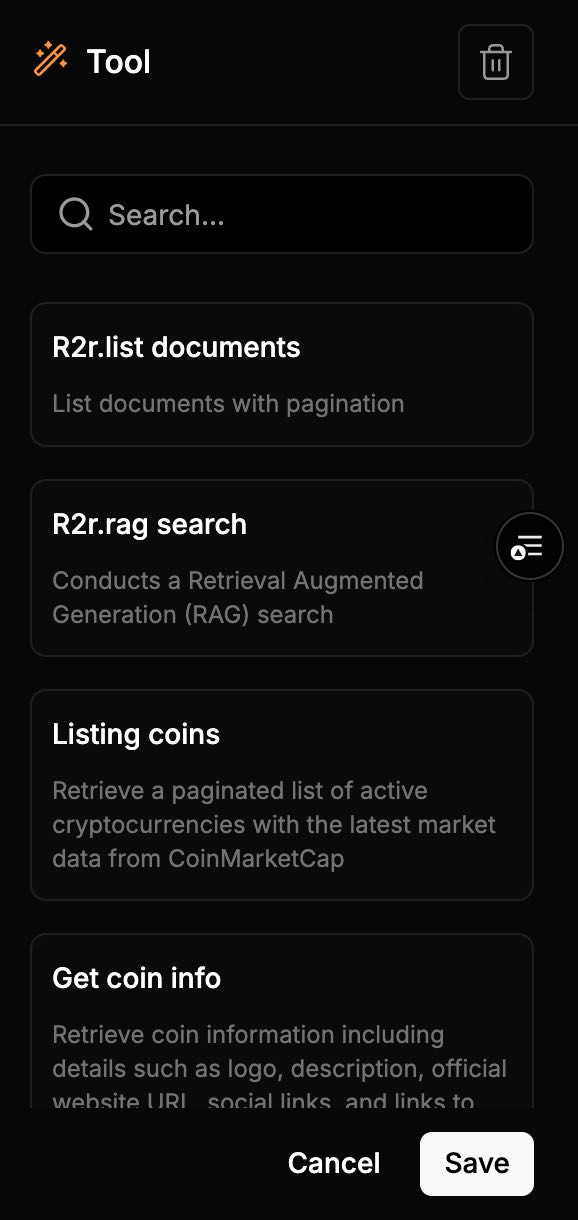

To use a Tool:

  • Add the Tool component to your flow.
  • Select one from the built-in list — no manual configuration is required.
Tool NameDescription
r2r.list documentsLists documents with pagination.
r2r.rag searchPerforms a Retrieval-Augmented Generation (RAG) search.
listing coinsRetrieves a paginated list of active cryptocurrencies.
get coin infoReturns coin metadata like logo, description, links, and documentation.
get coin quotesProvides real-time price quotes for cryptocurrencies.
get coin quotes historicalReturns historical price quotes.
search the webPerforms a web search. Requires text input.
search the web asyncPerforms a web search asynchronously. Requires text input.

📘

Note: When connecting components, remember — arrow always points from Agent or Task → Tool. Tools never initiate.

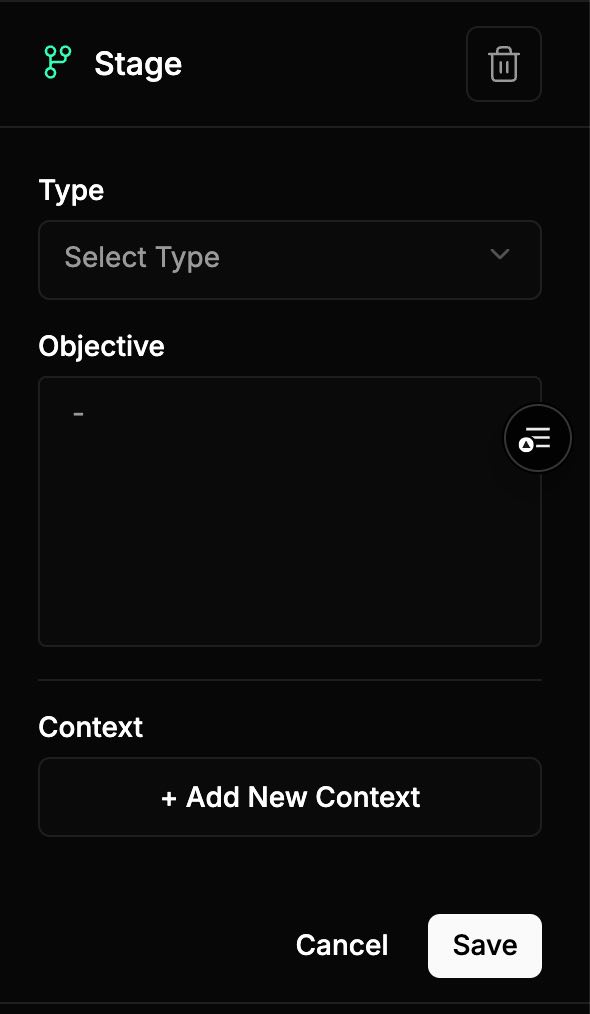

5. Add Stages (Optional)

Add Stage components to organize your workflow into sequential or parallel stages, each with defined objectives and context. Configure each Stage with: Type, Objective, Result Type, Context

6. Connect Everything

In the Agentic Workflow Editor, components are connected to define how data and logic flow between them.

  • Agents and Tasks are active components — they initiate actions.
  • Tools and Models are passive — they are called by Agents or Tasks.

Valid Connection Examples:

  • Agent → Tool
  • Agent → Model
  • Task → Tool

Invalid:

  • Tool → Agent
  • Tool → Task

📘

Tools don’t initiate logic — they return results when triggered by another component.

To create a connection: Drag from the top-right circle of one block to another. This sets execution order and data flow

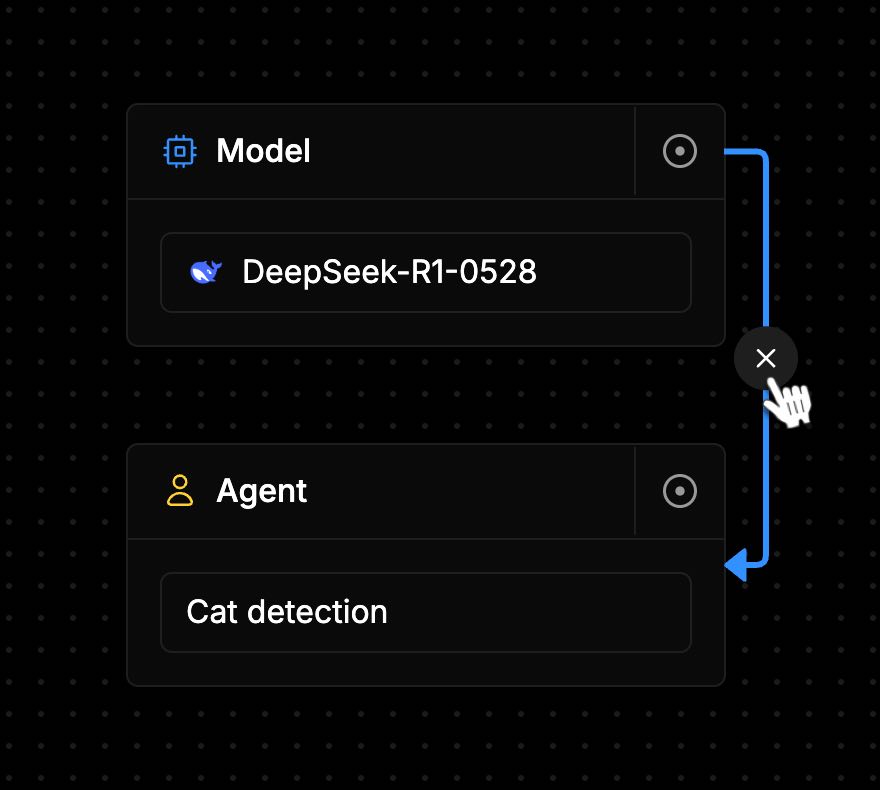

To remove a connection: Hover over the connecting line, then click the cross icon to remove it.

7. Run and Review

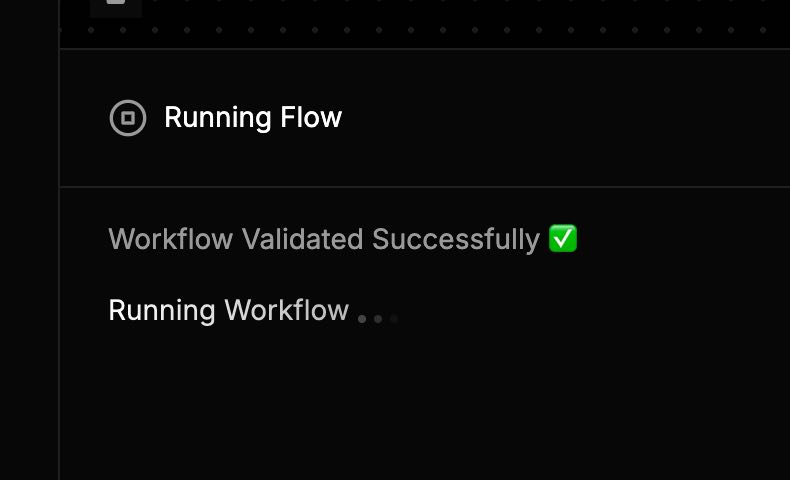

Hit Run to execute your flow and see step-by-step output in the Flow Outcome panel.

  • Successful real-time execution steps in Flow Outcome

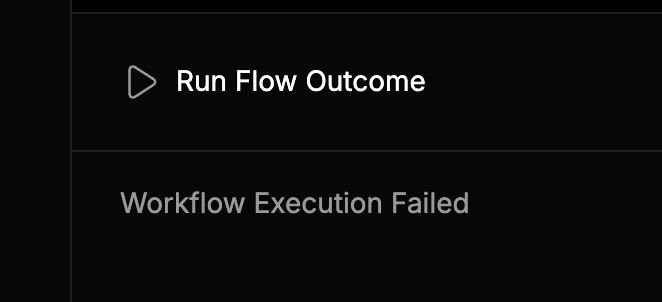

  • Errors (e.g., logic issues or invalid config) will be displayed clearly

8. Reposition or Delete

  • Drag components freely to organize your flow

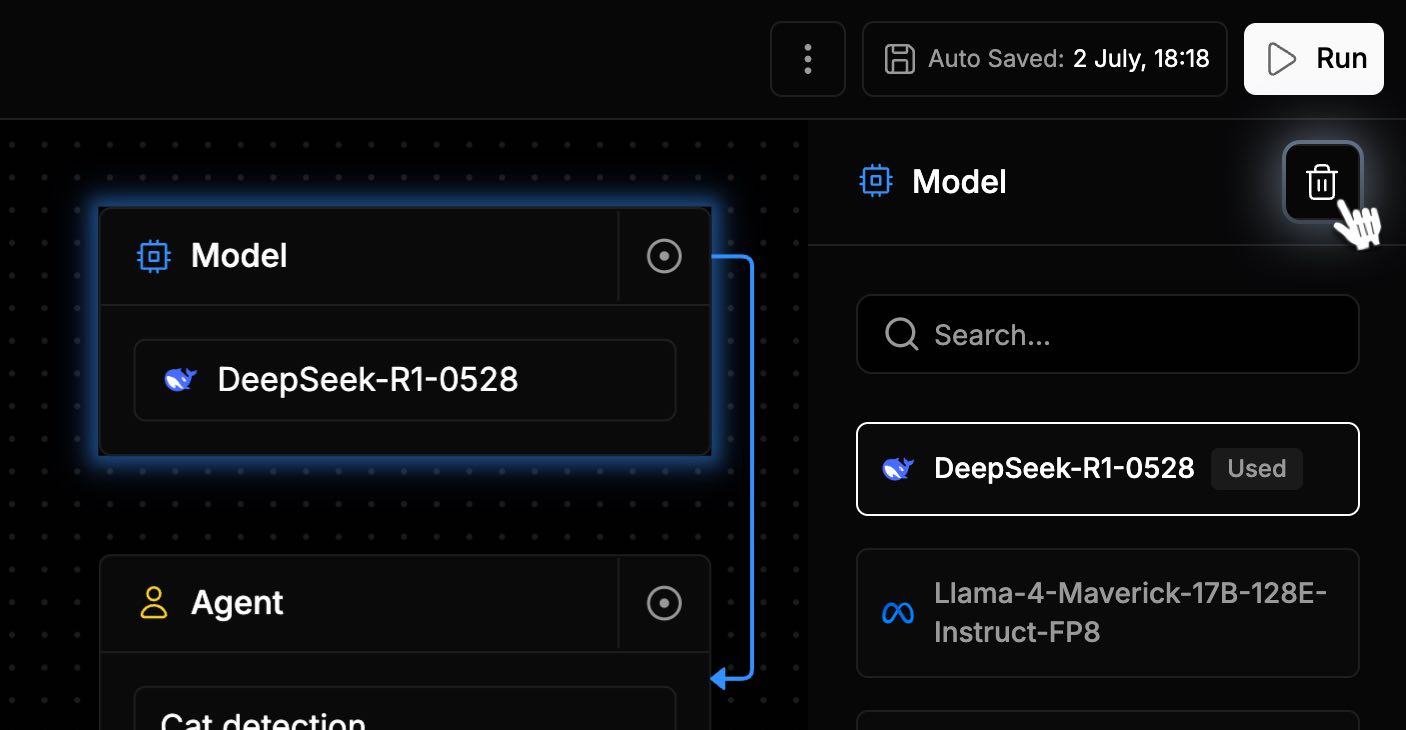

  • To delete a component: Select the block in the editor, then click the trash icon in the right sidebar

Saving, Exporting

  • Your work is autosaved, no need to click Save (see timestamp near Run).

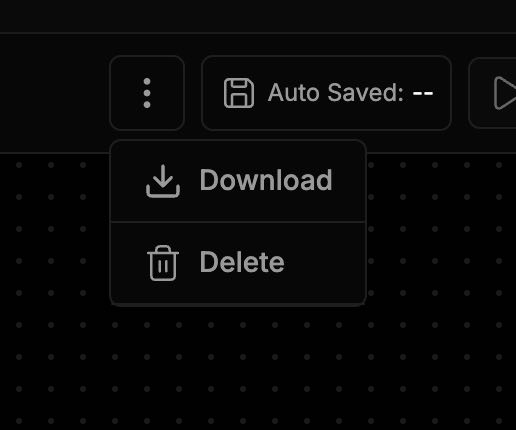

  • Click three dots (top-right) to :

    • Download as .yaml your Flow
    • Delete flow from your account

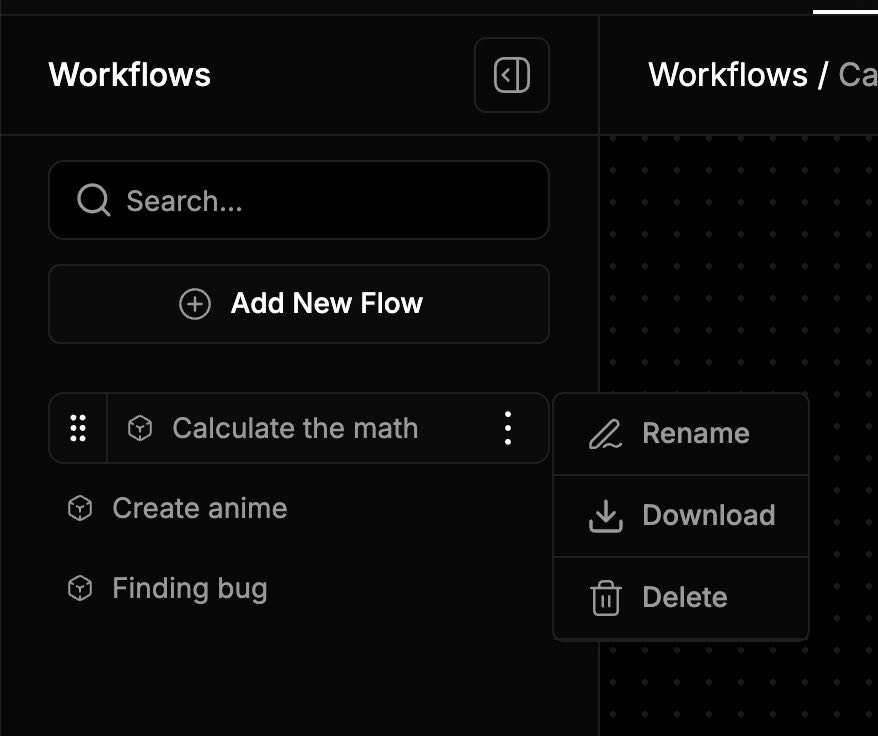

Left Sidebar: Workflows

The left sidebar helps you organize and manage your workflows efficiently. Here's how it works:

  • Search Bar
    Quickly find any existing workflow by typing its name.
  • Add New Flow
    Use the “+ Flow” button to start a new workflow inside the selected folder.
  • Flow List
    Displays all your existing workflows, grouped by folders.
    Each flow entry shows the number of components inside it, e.g. (2).
  • Flow Actions (Hover Options)
    When you hover over a flow in the list, additional options appear:
    • Edit – Open the flow in the editor.
    • Rename – Update the flow name.
    • Delete – Permanently remove the flow (confirmation required).

You can also collapse the left sidebar to maximize the workspace. Click the collapse arrow icon to hide or show the sidebar.

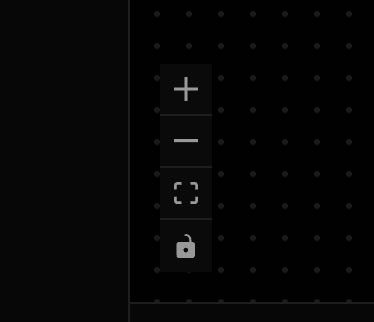

Canvas Tools

  • Zoom In / Out using + / - buttons
  • Use Lock icon to freeze layout
  • Use Fit to View to focus on working area
  • Collapse Left / Bottom Panels for full-screen editing

What Happens Under the Hood?

Each flow is executed as an agentic graph:

  • Components are orchestrated via context-passing protocol
  • Execution supports branching, parallelism, and tool chaining
  • Flow outcome shows step-by-step logs, results, and failures

📘

Note: execution is managed by IO’s internal orchestration engine, ensuring retry logic, state management, and observability.

Tips

  • Start with an Agent → Connect an AI Model → Add Tasks and Tools
  • Keep blocks modular and reusable
  • Use Flow Outcome to debug before scaling
  • YAML export lets you version-control or share flows

Shortcuts & Extras

ActionHow
Upload FlowClick Import From YAML, select .yaml, click Generate
Delete FlowClick , choose Delete Flow (confirmation popup)
Export FlowClick , choose Download YAML
Collapse PanelsClick arrows on Left or Bottom bars
Fit ViewUse Zoom to Fit icon
